1、Servo Driven Independent servo driven system in each unit to guarantee stable register at high printing speed.
|
|
2、Printing Unit Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quality.
|
|
3、Pre-register system Based upon the printing length, input log data into the sliding console, each unit will automatically be adjusted to its ready position.
|
|
4、Register System Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
|
|
5、Vacuum Backflow Control Unwind Vacuum backflow cylinder can prevent scratches on the back of label paper during intermittent motion.
|
|
6、No Joystick Fully automatic operation system including pressure adjustment, inking roll washup.roller clutch, etc.
|
|
7、Easy to Operate Equipped with sliding touch screen console which can be moving around to increase the efficiency of operator.
|
|
8、Printing Size Technology to minimize printing size to achieve larger scale of variable size printing.
|
|
9、British Control System Apply electronic component from famous international brand to guarantee long term reliable operation.
|
|
10、Lubrication System Centralized automatic lubrication.
|
|
11、Adopt Latest German Technology of Offset Press Reasonable structure, low noise and energy consumption.
|
Technical Specification
Model |
ZTJ-330 |
ZTJ-520 |
Max. Web Width |
330mm |
520mm |
Max. Printing Width |
320mm |
510mm |
Printing Repeat |
100~350mm |
150~380mm |
Thickness of Substrate |
0.1~0.3mm |
0.1~0.35mm |
Machine Speed |
50-180rpm(50M/min) |
50~160rpm |
Max. Unwind Diameter |
700mm |
1000mm |
Max. Rewind Diameter |
700mm |
1000mm |
Pneumatic Requirement |
7kg/cm2 |
10kg/cm2 |
Total Capacrty |
30kw/6 colors(Not including UV) |
60kw/6 colors(Not including UV) |
UV Capacity |
4.8kw/color |
7kw/color |
Power |
3 Phases 380V |
3 Phases 380V |
Overall Dimension(LxWx H) |
9500 x1700x1600mm |
11880x2110x1600mm |
Machine Weight |
about 13 ton/6 colors |
about 15 ton/6 Colors |
Notes: With the viriation of the length to be printed, machine speed should be changed.
*lts overall dimension and manufacturing Process are subject to change without further notice.

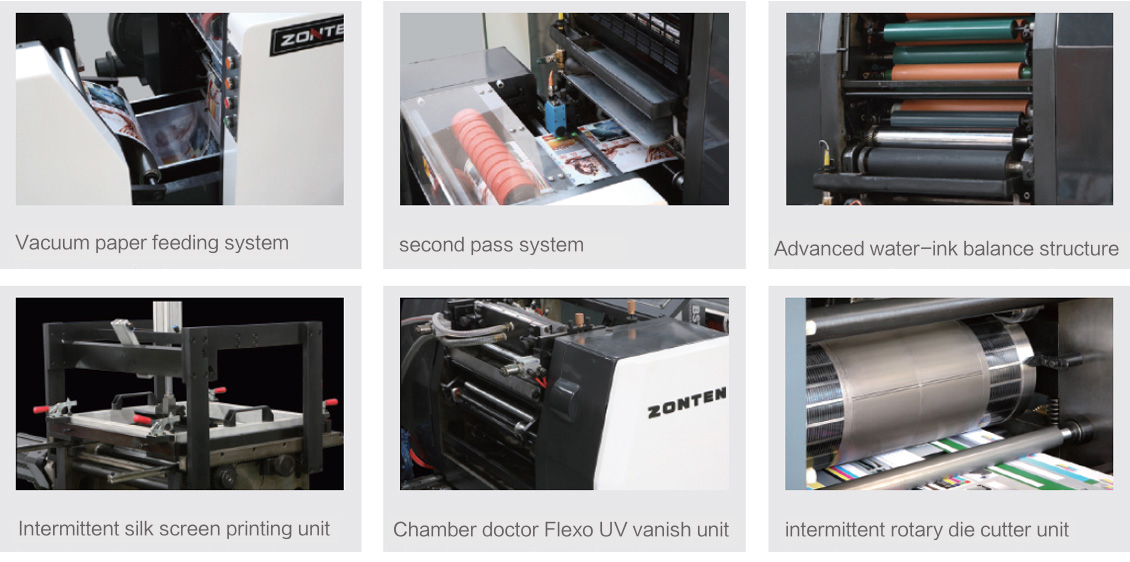

Optionals
