  • LRY-330/450 Stacked Flexographic Presses

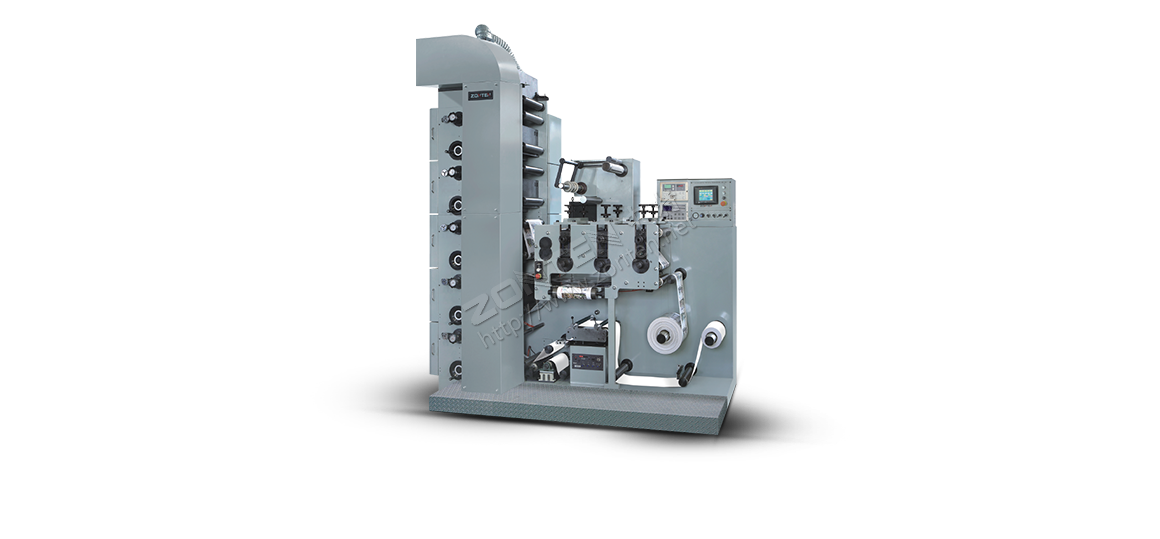

LRY-330/450 Stacked Flexographic Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


Performance and characteristics




Optionals

1、Single stacker

2、UV curing unit

3、Machine color

4、Cold foil




Technical Specification

Model

LRY-330

LRY-450

Max. Web Width

330mm

450mm

Max. Printing Width

320mm

440mm

Printing Repeat

180mm-380mm/min

180mm-380mm/min

Color

2~6

2~6

Thickness of Substrate

0.1~0.3mm

0.1~0.3mm

Machine Speed

10m-80m/min

10m-80m/min

Max. Unwind Diameter

650mm

650mm

Max. Rewind Diameter

650mm

650mm

Rotarlr-cutting Stations

3

3

Main Motor Capacity

2.2kw

2.2kw

Main Power

380V/AC 3 phase 50HZ

380V/AC 3 phase 50HZ

Overall Dimension(LxWxH)

2420x1020x2740mm

2420x1020x 2740mm

Machine Weight

2500kg /5 corlors

3000kg /5 corlors

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.
